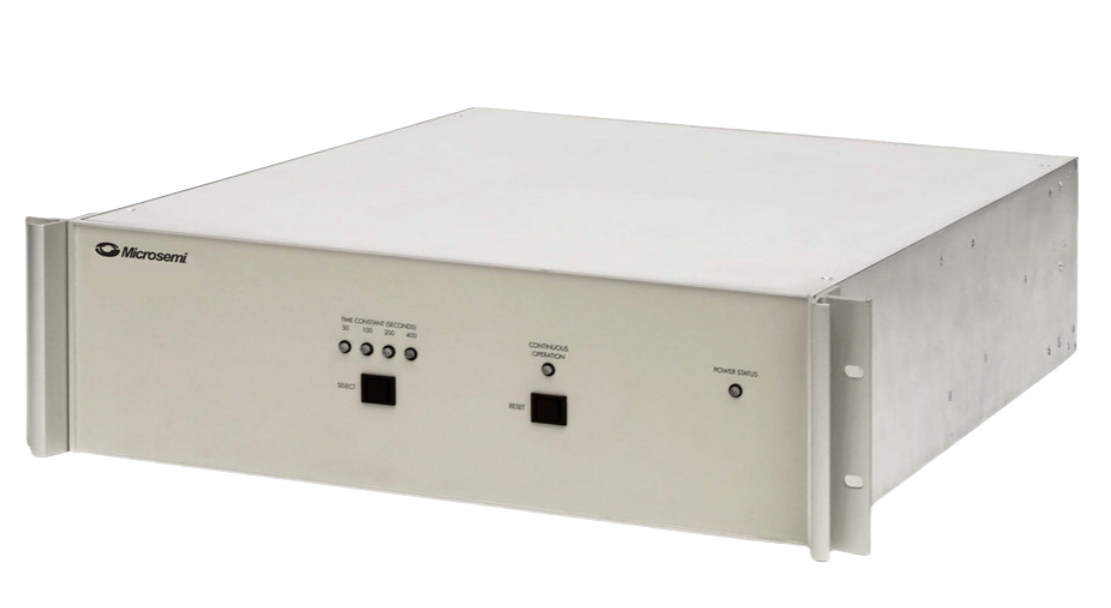

4145C 超纯净石英晶体频率标准晶体频率标准
产品描述
Microsemi公司的4145C通过锁相过滤技术可以改善铯束原子频率标准的相位噪声和艾伦方差。使用BVA和SC技术，5145C可以净化铯钟输出的信号，从而提供更优异的短期和中期指标。
技术指标

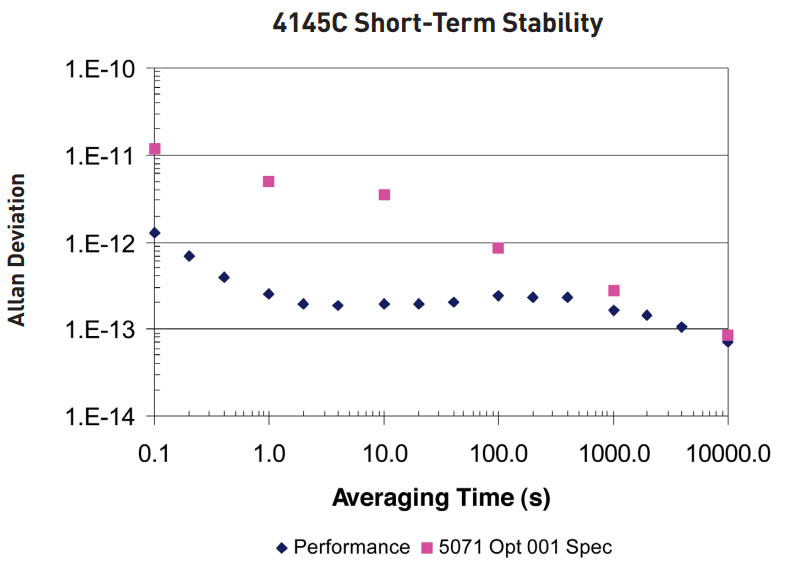

稳定度：艾伦方差：
1s 3.0E-13
100s 3.0E-13
SSB相位噪声： 10MHz 5MHz
1Hz -120dBc -125dBc
10Hz -135dBc -140dBc
100Hz -145dBc -150dBc
1,000Hz -160dBc -160dBc
10,000Hz -160dBc -160dBc
100,000Hz -160dBc -160dBc

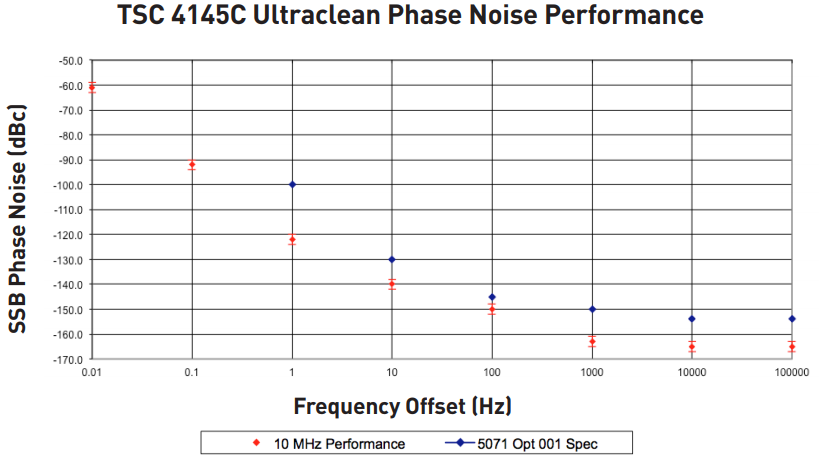

4145c Phase Noise Performance
频率输入：
- 频率：5MHz
- 类型：正弦
- 振幅：+13dBm，+/-1dBm
- 负载阻抗：50Ω
- 连接器：SMA
频率输出：
- 频率：2路10MHz，2路5MHz
- 类型：正弦
- 振幅：+15dBm，+/-1.5dBm
- 负载阻抗：50Ω
- 连接器：SMA
供电：
- 交流电压：85-264V，47-63Hz
- 直流供电：24V+10%
- 功耗：50W（最大 ）
开机特性：15分钟，至2.0E-8
恒温槽温度监控： 10mV/℃
规格尺寸：尺寸：43.2cm x 13.3cm x 55.9 cm
重量：9kg
4145c Phase Noise Performance
