LP-200 LP-PTP CardHalf height PTP clock card

Product description

The LP-200 board standard server of Shanhe Electronics is taking over the functions in the enterprise network, previously using dedicated clock hardware. Some applications that support critical infrastructure require tight synchronization to be efficient and reliable. A typical clock server hardware alone cannot meet the required synchronization accuracy and flexibility.

Our LP-200 PTP clock card is a card based synchronization solution designed for delivering and ensuring precise synchronization. The clock card design embodies the leading market and professional knowledge and experience of Shanhe Electronics, and can be plugged into standard servers to achieve accurate PTP, Synce, PPS, and TOD synchronization.

The LP-200 PTP clock card provides a comprehensive set of synchronization functions, including GNSS receiver, PTP master clock, NTP server, SyncE, and very accurate boundary clock. The half height PCIe size can be inserted into any standard server to provide accurate clock, including comprehensive management and security functions.

Installing the T506 clock card in the server enables precise and reliable synchronization of applications. Accurate and reliable time information is provided by PTP and NTP time servers, which can be synchronized with the onboard GNSS receiver in UTC. Our LP-200 clock card is essential for any hosted critical task and time sensitive application server.

Advantage

Standard PCIe cards: Half height, standard high single and dual slot server cards

Verified Beidou synchronization technology: accelerates time to market with less development and integration work, while providing comprehensive synchronization functionality

Excellent and rich synchronization interface with built-in GNSS receiver, enabling PRTC and IEEE1588v2 master clock (GM), boundary clock (BC), slave clock (SC), and NTP server functions

• High reliability: Multiple backup options - high stability crystal oscillator/rubidium atomic clock, SyncE and PTP can be used in case of GNSS interruption

• Supports multiple time code outputs such as standard 1PPS, 10MHz, TOD, etc

• BdtimeTM synchronous monitoring technology: ensuring comprehensive monitoring and analysis of GNSS synchronization

• Open control interface: Management integration through standardized information model, and optional use of our integrated synchronous controller key functions

• Integrated GNSS receiver

• Integrated GM, BC, SC

• Integrated NTP server

• Robust design

• The module can be inserted into the host device

• Optional punctuality function

Applied in the network

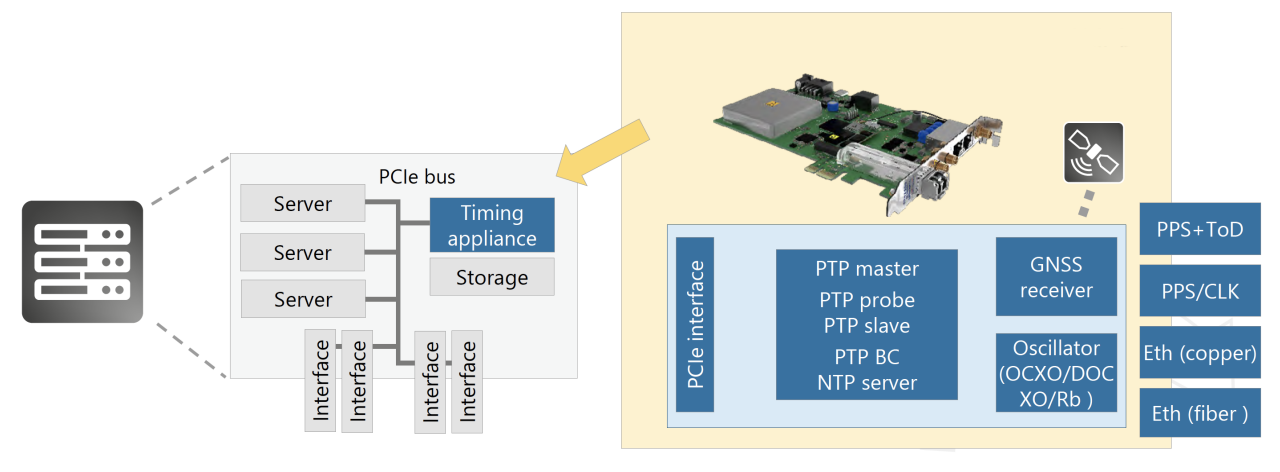

• PCIe clock card

• PCIe pluggable clock card provides standard and reliable clock synchronization for servers

• Achieve precise synchronization of critical equipment and time sensitive software applications in areas such as mobile networks, critical infrastructure, power facilities, and professional broadcasting

• Synchronize time, frequency, and phase with PTP, NTP, SyncE, and TOD

• No need for external synchronization devices

• The best choice for direct management integration through open mode control

NTP service

• The smallest NTP server

• NTP server with hardware responsive security

• GNSS Reference Level 1 Time Server

• NTP v1, v2, v3, v4 and SNTP IPv4/IPv6

• Time&Date Agreement

• Lock GNSS, NTP has an accuracy better than+/-100ns for UTC

• NTP response program based on hardware DoS protection

• Up to 500000 responses per second

• Support PTP and NTP services on the same port

• PTP to NTP conversion

• PTP backup when GNSS is interrupted

• Fixed or mobile platforms

GNSS receiver

• Provide high precision for PRTC-A applications

• Synchronization accuracy with UTC+/-100 nanoseconds

• Independent 72 channels

• Support single satellite timing mode     -Measure fixed position    -Fixed position can be set

• Navigation mode

• Configurable satellite SNR and elevation mask

• Advanced deception and interference detection capabilities at the device level

• Integrated controller with NMS GNSS support function for AI based deception and interference detection

• GPS/QZSS L1 C/A and GLONASS L10F, BeiDou B1,   Galileo E1,SBAS(QZSS,WAAS,EGNOS,MSAS)

• Up to three parallel GNSS constellations

• Users can configure antenna delay compensation

• Miniature AMC4 RF connector, 50 ohms (1.2mm connection height)

• 3.3V@100mA  max

meet the standard

• ITU-T G.8261, G.8262, G.8264

• ITU-T G.8272, G.811

• ITU-T G.8265.1, G.8275.1. G.8275.2

• IEEE 1588v2 (PTP)

• RFC 1059 (NTPv1), RFC 1119 (NTPv2), RFC 1305   (NTPv3),

• RFC 5905 (NTPv4), RFC 4330 (SNTPv4)

• RFC868 (TIME), RFC867(DAYTIME)

• ETSI EN 300 386 V1.6.1

• EN 55024

• EN 55022 Class-B

• AS/NZS CISPR 22

• FCC CFR 47 Part 15 Subpart B

• ANSI C63.4 Class-B

• IEC/EN 61000-3-2

• IEC/EN 61000-3-3

• IEC/EN 61000-4-2 (ESD): ±15 kV / ±8 kV (air/   contact)

• IEC/EN 61000-4-3 (RI)

• IEC/EN 61000-4-4 (EFT): 1 kV / 50 A (5/50 ns)

• IEC/EN 61000-4-5 (Surge): 4KV (10/700 μs)

• IEC/EN 61000-4-6 (CI)

• EN 60950-1: +A11, +A12, +2 (SAFETY)

RoHS compliance

Time and phase accuracy

G.8272/G.8273.1 is compatible with PRTC (± 100nsec relative to UTCMTIE<100nsec). When locked to GNSS during GNSS interruption, G.811PRC/G.8272PRTTCSync-E input is used for timing

• -Traceable to G.811PRC: time error <UTC+/-1 μ s 24 hours

• -Traceable to G.8272PRTC: Time Error <UTC+/-1 μ s 72 hours
